AB IPBox99HD svart PVR ready Enigma 2 HDTV DVB-S2 satellitmottagare

Direktlänk: http://www.netvaruhuset.com/se/Art-1232.html

Klicka för att förstora

Artikel:	IPBox99HD
Lagerstatus:	Finns i lager
Pris:	~~2995.00~~ 2490.00
	(1992.00 exkl moms)

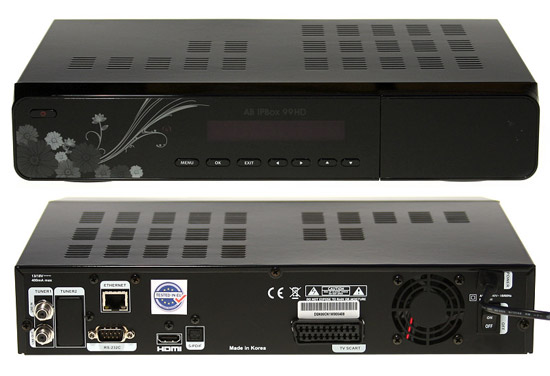

AB IPBox99HD svart PVR ready Enigma 2 HDTV DVB-S2 satellitmottagare

Svart front med VFD display (utan blommor som på bilden)

Enigma 2 HD support software

1 x DVB-S2 tuner embedded

Possible to install second P&P tuner DVB-S2, DVB-T, DVB-C

1 x Smart Card Reader (CONAX)

1 x USB 2.0

1 x Scart

Possible installing Plugins

PVR function with internal HDD
Technical specifications:

CPU
Type 266MHz ST40-202 32bit RISC CPU
Data/Instruction Cache 32KB/16KB

Satellite 8PSK Tuner (DVB-S2)
Input Connector IEC169-24 Female(F-type)
Loop through Connector IEC169-24 Female(F-type)
Input Signal Level -65 to -25dBm>
Frequency Range 950MHz to 2150MHz
LNB Control Vertical 13V(400mA Max)
Horizontal 18V(400mA Max)
Waveform QPSK, 8PSK(C/KU band compatible)
22KHz Tone Frequency 22±2KHz
Amplitude 0.6±0.2V
Symbol Rate QPSK( up to 45MS/s), DVB-S2 :QPSK(up to 36MS/S), 8PSK(up to 30MS/s)
DiSEqC Control Version 1.0/1.1/1.2/USALS Compatible

MPEG Transport Stream & A/V Decoding
Input Stream ISO/IEC 13818-2 Specification and H.264
Profile & Level MPEG-2 MP@ML, MP@HL, MPEG4 AP@HL/H.264 level 4.1
Input TS Data Rate 138Mbit/S max.
Aspect Ratio 4:3, 16:9 with pan/scan vector
Video Resolution 720 x 576(PAL), 720 x 480(NTSC), 1080i, 720P, 480i, 480P
Audio Decoding MPEG-1 Audio Layer 1,2, Musicam
Audio Mode Stereo, Dual Channel, Joint Stereo, Mono
Sample Rate 32, 44.1, and 48KHz

Memory
Flash Memory 32MB
DDR SDRAM 256MB (128MB + 128MB)

Storage & Rear connector
Digital interface for HDTV HDMI 1.1 with HDCP
SCART I/F TV & VCR (1 Ports)
Digital Audio S/PDIF via Optical

Data In/Out
USB Host Interface USB A-Type Female (USB 2.0) X 1 ports

Network
Ethernet RJ-45 (10/100BT)

Conditional Access
Smartcard Interface 1 Slots

Front Display
VFD Vacuum Fluorescent Display as Alpha numeric style (14 dot matrix)

Power Supply
Input Voltage AC100-240V~, 50/60Hz
Type SMPS
Power Consumption 30W (Stnadby:3W)
Protection Separate Internal Fuse and Chassis

För mer information, vänligen uppsök produktens hemsida.
