Asrock 939A785GMH AMD785G HDMI socket 939 m-ATX

Direktlänk: http://www.netvaruhuset.com/se/Art-1159.html

Klicka för att förstora

Artikel:	939A785GMH
Lagerstatus:	Finns i lager
Pris:	995.00
	(796.00 exkl moms)

Asrock 939A785GMH AMD785G HDMI socket 939 m-ATX moderkort

1. Socket 939 moderkort for AMD Athlon™ 64FX / 64X2 / 64 processors
2. Solid Capacitor for CPU power
3. AMD 785G + SB710 Chipsets
4. Supports Dual Channel DDR 400/333/266 with 4 DIMM slots, maximum capacity up to 4GB

* Integrated AMD Radeon HD 4200 graphics, DX10.1 class iGPU, Shader Model 4.1, Max. shared memory 512MB
* Supports ATI™ Hybrid CrossFireX™
* 1 x PCI Express 2.0 x16 slot (green @ x16 mode)
* Three VGA Output options: D-Sub, DVI-D and HDMI
* Supports HDCP function with DVI-D port
* Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI-D port
* 5 x SATAII 3.0 Gb/s, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and "Hot Plug" functions
* 1 x eSATAII Port
* PCIE x1 Gigabit LAN 10/100/1000 Mb/s
* ASRock Smart BIOS, OC DNA, OC Tuner, IES, Instant Boot, Instant Flash
* EuP Ready
* 7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)
* Windows® Vista™ Premium 2008 Logo Ready
* I/O Panel : 1 x VGA/DVI-D Port, 1 x VGA/D-Sub Port, 1 x HDMI Port, 1 x Optical SPDIF Out Port, 4 x Ready-to-Use USB 2.0 Ports, 1 x eSATAII Port, 1 x RJ-45 LAN Port with LED

Specifikation:
CPU support:
- Socket 939 for AMD Athlon™ 64FX / 64X2 / 64 processors
- Supports AMD's Cool 'n' Quiet Technology
- FSB 1000 MHz (2.0 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport Technology
Chipset:
- Northbridge: AMD 785G
- Southbridge: AMD SB710
Memory:
- Dual Channel DDR memory technology
- 4 x DDR DIMM slots
- Supports DDR 400/333/266 non-ECC, un-buffered memory
- Max. capacity of system memory: 4GB*

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.
BIOS:
- 8Mb AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- VCCM, NB Voltage Multi-adjustment
- Supports Smart BIOS
Audio, Video and Networking
Graphics:
- Integrated AMD Radeon HD 4200 graphics
- DX10.1 class iGPU, Shader Model 4.1
- Max. shared memory 512MB
- Integrated 128MB side port memory for iGPU
- Three VGA Output options: D-Sub, DVI-D and HDMI
- Supports HDMI Technology with max. resolution up to 1920x1200 (1080P)
- Supports Dual-link DVI with max. resolution up to 2560x1600 @ 75Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
- Supports HDCP function with DVI-D port
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI-D port
Audio:
- 7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)
LAN:
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111DL
- Supports Wake-On-LAN
Expansion / Connectivity
Slots:
- 1 x PCI Express 2.0 x16 slot (green @ x16 mode)
- 1 x PCI Express 2.0 x1 slot
- 2 x PCI slots
- Supports ATI™ Hybrid CrossFireX™
Connector - 5 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and "Hot Plug" functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x COM port header
- 1 x Print port header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
Rear Panel I/O:

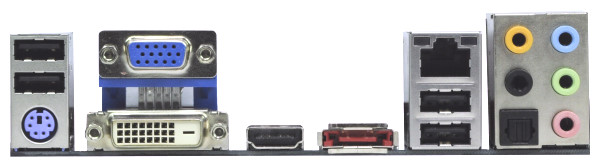

I/O Panel
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x eSATAII Port
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Unique Feature - ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Support CD:
- Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories:
- Quick Installation Guide, Support CD, I/O Shield
- ATA 133 Cable
- 2 x SATA Data Cables (optional)
Hardware Monitor:
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor - Micro ATX Form Factor: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm
- Solid Capacitor for CPU power
OS support:
- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP Media Center / XP 64-bit compliant
Certifications:
- FCC, CE, WHQL
- EuP Ready (EuP ready power supply is required)

För mer information, vänligen uppsök produktens hemsida.
