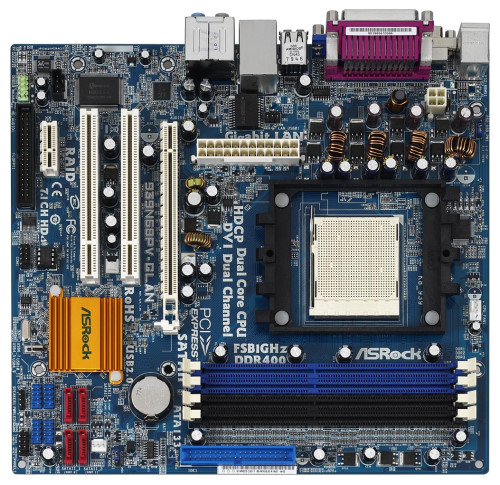

Asrock 939N68PV-GLAN Socket 939 GF7050 VGA DDR SATA-2 m-ATX

Direktlänk: http://www.netvaruhuset.com/se/Art-997.html

Klicka för att förstora

Artikel:	939N68PV-GLAN
Lagerstatus:
Pris:	995.00
	(796.00 exkl moms)

Asrock 939N68PV-GLAN Socket 939 GF7050 VGA DDR SATA-2 m-ATX

Socket 939 for AMD Athlon™ 64FX / 64X2 / 64 processors
- Supports AMD´s Cool ´n´ Quiet Technology
- FSB 1000 MHz (2.0 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport Technology
Chipset - NVIDIA® GeForce 7050 / nForce 630A MCP
Memory - Dual Channel DDR memory technology
- 4 x DDR DIMM slots
- Supports DDR400/333/266 non-ECC, un-buffered memory
- Max. capacity of system memory: 4GB*

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.

BIOS - 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
Audio, Video and Networking
Graphics - Integrated NVIDIA® GeForce7 Series (NV44)
- DX9.0 VGA, Pixel Shader 3.0
- Max. shared memory 256MB
- Dual VGA Output: support DVI-D and D-Sub ports by independent display controllers
- Supports HDCP function with DVI-D port
- NVIDIA® PureVideo™ Ready
Audio - 7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)
- Chipset embedded HDMI Audio
LAN - Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Realtek RTL8211B
- Supports Wake-On-LAN
Expansion / Connectivity
Slots - 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 2 x PCI slots
Connector - 4 x Serial ATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5, JBOD), NCQ, AHCI and "Hot Plug" functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x DeskExpress Hot Plug Detection header
- 1 x COM Port header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 4 x USB 2.0 headers (support 8 USB 2.0 ports)
Rear Panel I/O ASRock DVI/H I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x Parallel Port (ECP/EPP Support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 Port
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Hybrid Booster - CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories - Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 cables
- 1 x SATA data cable (optional)
- 1 x SATA 1 to 1 power cable (optional)
- 1 x COM port bracket
Hardware Monitor - CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor - Micro ATX Form Factor: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm
OS - Microsoft® Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant
Certifications - FCC, CE, WHQ

För mer information, vänligen uppsök produktens hemsida.
