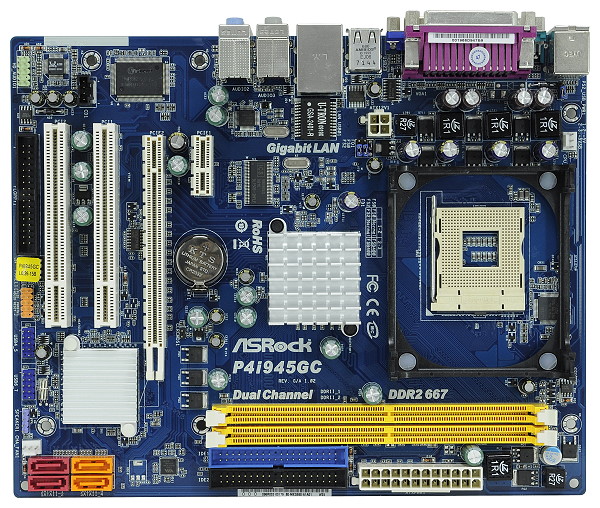

Asrock P4i945GC DDR2 PCI-E Socket 478 m-ATX

Direktlänk: http://www.netvaruhuset.com/se/Art-1210.html

Klicka för att förstora

Artikel:	P4i945GC
Lagerstatus:	Finns i lager
Pris:	849.00
	(679.20 exkl moms)

Asrock P4i945GC DDR2 PCI-E Socket 478 moderkort m-ATX

FSB 800/533/400 MHz

Supports Dual Channel DDR2 667/533/400, 2 x DIMM slots, Max. capacity up to 4GB

Intel® Graphics Media Accelerator 950, DirectX 9.0 and Max. shared memory 224MB

1 x PCI Express x16 slot

PCIE x1 Gigabit LAN 10/100/1000 Mb/s

4 x SATAII 3.0 Gb/s connectors

Supports Smart BIOS, ASRock Instant Boot, Instant Flash, Hybrid Booster

7.1 CH Windows® Vista™ Premium Level HD Audio (Realtek ALC888 Audio Codec)

ASRock 8CH I/O Plus: 1 x Serial Port: COM1, 4 x Ready-to-Use USB 2.0 Ports, 1 x RJ-45 LAN Port

Specifications:
CPU
- Socket 478 for Intel® Pentium® 4 / Celeron® D (Prescott, Northwood) processors
- FSB 800/533/400 MHz
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
Chipset
- Northbridge: Intel® 945GC
- Southbridge: Intel® ICH7
Memory
- Dual Channel DDR2 memory technology
- 2 x DDR2 DIMM slots
- Supports DDR2 667/533/400 non-ECC, un-buffered memory
- Max. capacity of system memory: 4GB*

BIOS
- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- Supports Smart BIOS
Audio, Video and Networking
Graphics - Intel® Graphics Media Accelerator 950
- Pixel Shader 2.0, DirectX 9.0
- Max. shared memory 224MB
- Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
Audio - 7.1 CH Windows® Vista™ Premium Level HD Audio (Realtek ALC888 Audio Codec)
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111DL
- Supports Wake-On-LAN
Expansion / Connectivity
Slots - 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 2 x PCI slots
Connector - 4 x SATAII 3.0 Gb/s connectors (No support for RAID and "Hot Plug" functions)
- 1 x ATA100 IDE connector by Intel® ICH7 (supports 2 x IDE devices)
- 1 x ATA133 IDE connector by VIA® VT6415 (supports 2 x IDE devices)
- 1 x Floppy connector
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
Rear Panel I/O ASRock 8CH I/O Plus
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x VGA Port
- 1 x Parallel Port (ECP/EPP support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Unique Feature - Instant Boot
- ASRock Instant Flash
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories - Quick Installation Guide, Support CD, I/O Shield
- ATA Cable (optional)
- 1 x SATA Data Cable (optional)
Hardware Monitor - CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor - Micro ATX Form Factor: 9.6-in x 7.7-in, 24.4 cm x 19.6 cm
OS - Microsoft® Windows® 7 / Vista™ / XP / 2000 compliant
Certifications - FCC, CE, WHQL

För mer information, vänligen uppsök produktens hemsida.
