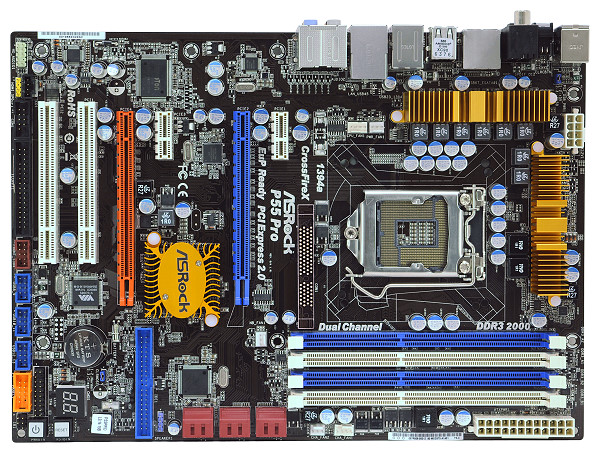

Asrock P55 PRO Intel P55 DDR3 GLAN Socket 1156 ATX

Asrock P55 PRO Intel P55 DDR3 GLAN Socket 1156 ATX

1. Supports the Intel® Core™ i7 and Intel® Core™ i5 Processors in the LGA1156 Package
2. Supports Intel® Turbo Boost Technology
3. ASRock DuraCap (2.5 x longer life time), 100% Japan-made high-quality Conductive Polymer Capacitors
4. Intel® P55 Chipset
5. Advanced V8 + 2 Power Phase Design
6. Supports Dual Channel DDR3 2600+(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory, 4 x DIMM slots, Max. capacity up to 16GB

* Supports ATI™ CrossFireX™ , Quad CrossFireX™
* 1 x PCI Express 2.0 x16 slot (at x16 mode), 1 x PCI Express 2.0 x16 slot (at x4 mode, 2.5GT/s), 2 x PCI Express 2.0 x1 slots (2.5GT/s)
* 6 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5 and Intel® Matrix Storage), NCQ, AHCI and Hot Plug functions
* 2 x Powered eSATAII/USB Connectors
* Supports 2 x IEEE1394 ports (one port on back panel, one header on board)
* PCIE x1 Gigabit LAN 10/100/1000 Mb/s
* 1 x Power Switch with LED
* 1 x Reset Switch with LED
* 1 x Clear CMOS Switch with LED
* 1 x TPM header
* Supports ASRock Instant Boot, Instant Flash, OC DNA
* Supports Smart BIOS, ASRock OC Tuner, Intelligent Energy Saver
* EuP Ready
* Combo Cooler Option (C.C.O.)
* 7.1 CH Windows® Vista™ Premium Level HD Audio with Content Protection, supports DAC with 110dB dynamic range (ALC890 Audio Codec)
* Premium Blu-ray audio support
* Windows® Vista™ Premium 2008 Logo Ready
* I/O Panel: 1 x Coaxial SPDIF Out Port, 1 x Optical SPDIF Out Port, 1 x IEEE 1394 Port, 6 x Ready-to-Use USB 2.0 Ports, 2 x Powered eSATAII/USB Connectors, 1 x RJ-45 LAN Port with LED, 1 x Clear CMOS Switch with LED
