Asus P4P800-VM Intel 865G 8xAGP 4xDIMM Socket 478 mATX Bulk

Direct link: http://www.netvaruhuset.com/se/Art-1136.html

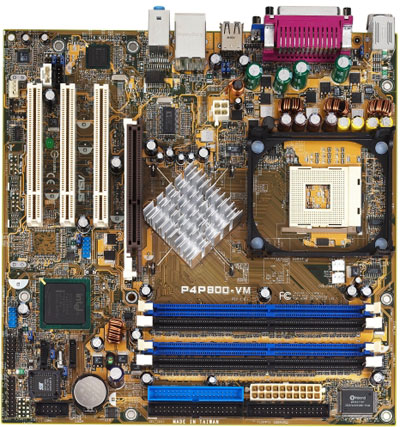

Click to enlarge

Article :	P4P800-VM
Stock :	In Stock
Price :	795.00
	(636.00 excl VAT)

Asus P4P800-VM mainboard socket 478 Intel 865G 8xAGP 4xDIMM mATX Bulk

Endast moderkort och I/O shield(bakplåt)

800FSB/4GB Dual Channel DDR400
-Powerful Intel Extreme Graphics 2
- AGP8X Technology
- Serial ATA
- S/PDIF-out Interface
- 6 Channel Audio
- 10/100/1000 Mbps LAN Supports
- Max. 8 USB2.0 ports support

Specifikation
CPU:
-Socket 478 for Intel Pentium 4/ Celeron up to 3.4GHz+
-Intel Hyper-Threading Technology ready
-New power design supports Intel next generation Prescott CPU

Kretstyp: Intel 865G GMCH Intel ICH5

Front Side Bus: 800/533/400MHz

Minne:
Dual channel memory architecture
4 x 184-pin DIMM Sockets support max. 4GB PC3200/PC2700/PC2100 non-ECC DDR SDRAM memory

VGA: Next generation integrated Intel Extreme Graphics

Expansionsplatser:
1 x AGP 8X
3 x PCI

IDE: 2 x UltraDMA 100/66/33

Serial ATA: Built-in ICH5 supports 2 x Serial ATA

Ljud:
ADI 1980 6-channel audio codec
S/PDIF out interface

LAN: Intel 10/100/1000 Mbps LAN

Hårdvaruövervakning:
Winbond 83627THF
2 FAN sensors and 2 Temperatures monitoring and 4 Voltage monitorings

Specialfunktioner:
Wake on Ring, Lan, USB, Keyboard & Mouse
STR (Suspend-to-RAM)
STD (Suspend-to-Disk)
ASUS CrashFree BIOS2
ASUS EZFlash
ASUS Mylogo

Bakpanels I/O-portar:
1 x Parallel
1 x VGA
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x Line In / Line Out / Microphone ports
1 x COM1
1 x RJ45
4 x USB 2.0

Interna I/O-anslutningar:
2 x USB 2.0 connector support additional 4 USB 2.0 ports
S/PDIF out connector
Game/MIDI port connector
CD / AUX audio in
CPU / Chassis FAN connectors
20 pin ATX Power connector
4 pin ATX 12V Power connector
20 Pin Panel connector
10 Pin Intel Front Panel Audio connector

BIOS: 2Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI
Industristandard: PCI 2.2, USB2.0
Hanteringslösningar: WfM 2.0,DMI 2.0,WOL by PME,WOR by PME

Tillbehör: I/O shield

Formfaktor: microATX Form Factor 9.6"x 9.6" (24.3cm x 24.3cm)

For more information, please visit this products webpage.
