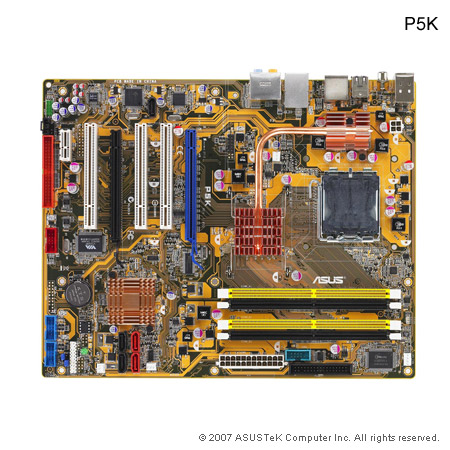

ASUS P5K Intel P35 Dual channel, Cross Fire, Heat Pipe, socket 775 ATX
utan tillbehör

ASUS Super Memspeed Technology Enhances Memory Speed up to 75%
- Support Intel® next generation 45nm Multi-core CPU
- Intel LGA775 Platform
- Intel® P35 chipset
- Dual-channel DDR2 1066/800/667 MHz
- Heat Pipe
- 2x1394
- 12xUSB 2.0
- All High-quality Conductive Polymer Capacitors

CPU Support:
Intel Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® Extreme/Pentium® D/Pentium® 4 Processors
Compatible with Intel® 05B/05A/06 processors
Support Intel® 45nm CPU
*This motherboard supports FSB 1600/1333/1066/800
** Please update the latest BIOS to support Intel 45nm CPU

Chipset:
Intel P35
Intel ICH9
Intel Fast Memory Access Technology

Front Side Bus:
1600/1333/1066/800 MHz

Memory:
4 x DIMM, Max. 8 GB, DDR2 1066*/800/667 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*The chipset officially supports the memory frequency up to DDR2 800MHz. Tuned by ASUS Super Memspeed Technology, this motherboard natively supports up to DDR2 1066MHz
Please refer to www.asus.com or user manual for Memory QVL.
**When installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

Expansion Slots:
2 x PCIe x16 (blue @ x16 mode, black @ x4 or x1 mode) supports CrossFire Technology
1 x PCIe x1
3 x PCI

Storage:
Southbridge
4 xSATA 3 Gb/s ports
JMicron® JMB363 PATA and SATA controller
1 xUltraDMA 133/100/66 for up to 2 PATA devices
1 xExternal SATA 3.0 Gb/s port (SATA On-the-Go)
1 xSATA 3.0 Gb/s ports
Support RAID 0,1,JBOD
LAN

PCIe Gigabit LAN controller featuring AI NET2
Audio

Realtek ALC 883, 8 -Channel High-Definition Audio CODEC
Coaxial / Optical S/PDIF out ports
ASUS Noise Filter
Support Jack-Sensing, Enumeration, Multi-streaming
IEEE 1394

VIA VT6308P controller supports 2 x 1394a ports (one at midboard; one at back panel)
USB

12 USB 2.0 ports (6 ports at mid-board, 6ports at back panel)
ASUS Unique Features

ASUS Quiet Thermal Solution
- ASUS AI Gear
- ASUS AI Nap
- ASUS Fanless Design: Pure Copper Heat-pipe solution
- ASUS Q-Fan

ASUS Crystal Sound
- ASUS Noise Filter
ASUS EZ DIY
- ASUS Q-Connector
- ASUS O.C. Profile
- ASUS CrashFree BIOS
- ASUS Music Alarm
- ASUS AI Slot Detector

Overclocking Features:
Intelligent overclocking tools
- ASUS AI Booster Utility
- ASUS AI NOS (Non-delay Overclocking System)
Precision Tweaker
- vDIMM: 16 -step DRAM voltage control
- vCore: Adjustable CPU voltage at 0.0125V increment
- vChipset 4-step Chipset voltage control
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz up to 800MHz at 1MHz increment
- DDR2 Memory tuning from 667MHz up to 1333MHz
- PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)

Other Features: ASUS MyLogo 2

Back Panel I/O Ports:
1 x PS/2 Keyboard
1 x External SATA
1 x S/PDIF Out
1 x IEEE 1394a
1 x LAN(RJ45) port
6 x USB 2.0/1.1
8 -Channel Audio I/O

Internal I/O Connectors:
3 x USB connectors support additional 6 USB ports
1 x Floppy disk drive connector
1 x IDE connector
5 x SATA connectors
1 x IEEE 1394a connector
1 x CPU Fan connector
2 x Chassis Fan connector
1 x Power Fan connector
1 x S/PDIF Out connector
x4-pin ATX 12V Power connector
24-pin Power connector
Front panel audio connector
COM connector
Chassis Intrusion connector
CD/AUX audio in
System Panel

BIOS:
8 Mb Flash ROM
DMI AMI BIOS
PnP
WfM
SM BIOS
ACPI 2.0a
ASUS EZ Flash 2
ASUS CrashFree BIOS 3

Manageability: WfM 2.0,DMI 2.0,WOL by PME,WOR by PME, PXE
O/S Compatibility:
Windows Vista
Windows XP

ATX Form Factor: 12 inch x9.6 inch ( 30.5 cm x24.4 cm )
