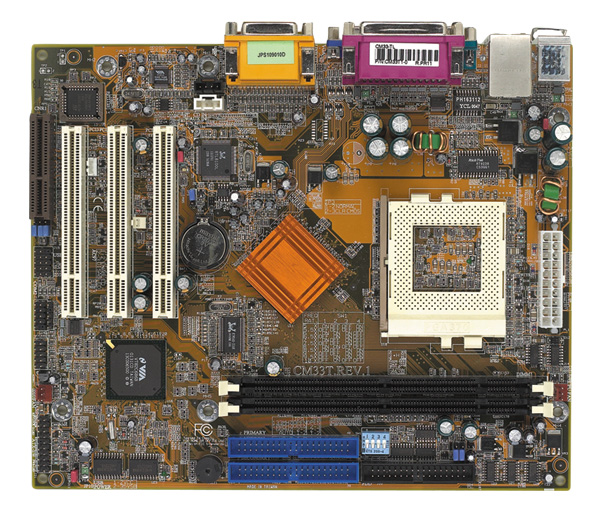

| DFI CM33-TL/G Socket 370 RoHS mATX
CPU Support:
Intel Pentium III FCPGA 1.13GHz-1.26GHz/133MHz
Intel Pentium III FCPGA 533EB-1GHz/133MHz
Intel Pentium III FCPGA 500E-1.1GHz/100MHz
Celeron FCPGA 1.2GHz+/100MHz
Celeron FCPGA 800MHz-1.1GHz/100MHz
Coppermine, Tualatin and VIA CyrixIII
CPU Socket:
Socket 370
Chipset
VIA 8601T/686B
Memory
2 x DIMM sockets max. 1 GB (unbuffered) Supports PC100 and PC133 SDRAM
Expansion Slots
3 PCI slots 1 CNR slot
BIOS
Award /2Mbit
Graphics
Integrated Trident 2D/3D/Video accelerator
Audio
AC`97 Audio codec
Super I/O
2 x NS16C550A compatible UARTs 1 x SPP/ECP/EPP parallel port
IDE
Dual PIO mode 3/4 EIDE channels up to 4 IDE devices UltraDMA/100 transfer rate up to 100MB/sec
Rear Panel I/O Ports
2 x USB, 1 x RJ45,1 x DB-9, 1 x DB-15, 1 x DB-25, 1 x PS/2 keyboard, 1 x PS/2 mouse, 1 x game/MIDI, 3 x Audio jacks
I/O Connectors
2 x external USB, 1 x external serial, 1 x IrDA, 2 x IDE, 1x Floppy, 1 x ATX power, 2 x fan, 1 x WOL, 1 x WOR, 1 x CD-in, 1 x AUX-in, 1 x external line-out and mic-in jacks connector
Power Management
ACPI and OS direct power management Wake-on event: RTC/Modem/LAN
Hardware Monitor
System, processor temperature, voltage and fan speed
PCB
microATX, 4 layers 24.4cm x 19cm 9.6 inch. x 7.48 inch. All specifications above are subject to change without prior notice.
|
