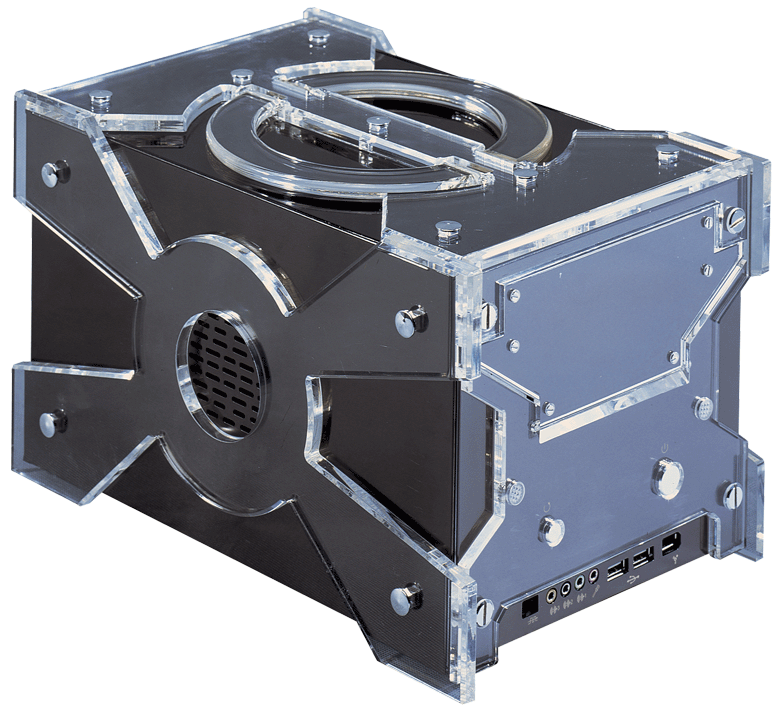

| DTK Minibarebone med titanium spegelblank yta , temp reglerad fläkt,
perfekt för HTPC. 1 st 5.25" plats för ex DVD-RW eller Blu-Ray spelare
finns bakom frontlucka.
CPU support:
· Support Socket 478 for Intel Pentium 4 / Celeron processor
· 400/533/800MHz Intel NetBurst micro-architecture bus
· Hyper-Threading Technology supported
Core Logic:
· Intel 82865G + ICH5 chipsets
Main Memory:
· Dual channel DDR Configuration consist of two DDR DIMM sockets
· Support DDR400/333 DIMMs up to 4GB
VGA:
· Integrated Graphics controller in 865G GMCH
· Support 3D/2D enhancements
· 865G can access graphics data located in system memory at 2.7 GB/s (DDR333) or 3.2GB/s (DDR400)
· Support extend AGP8X slot
Audio:
· AC-Link with AC’97 2.3 compliant
· Software audio with Realtek ALC650 Rev. F 6-channel AC’97 codec, S/PDIF Output/Input supported
USB 2.0:
· Integrated USB 2.0 controller in ICH5
· Compliant with USB 2.0 specification
· Support Hi-speed, Full-speed and Low-speed data transfer rate. Max. Bandwidth 480Mbits/s
· One 2X5 USB 2.0 pin header
Ethernet:
· Realtek RTL8100BL 10/100Base-T Ethernet controller, LQFP package
· Full-Duplex supported, WFM 2.0 compliant
Firewire 1394:
· TI TSB43AB23 1394a Host controller
· Compliant with IEEE 1394 OHCI Spec. Rev. 1.1
· Data transfer rate can be 100/200/400Mbps
LPC Super I/O:
· Winbond W83627HF LPC controller
· Build in FDC supports 1.2M/1.44M/2.88M FDD
ICH5 IDE:
· Integrated with Serial ATA Host controller, independent DMA operation on one ports, Data transfer rates up to 1.5GB/s
· Two enhanced PCI IDE channels which support up to 4 IDE devices with ATA-100 transfers up to 100MB/sec
Back Panel I/O Output:
· Power switch
· S/PDIF-OUT optical connector
· 2*USB 2.0 connectors, 1 RJ-45 LAN port
· 2*1394 vertical connectors
· PS/2 Keyboard and Mouse
· 1*fast serial ports, 1*D-type 15-pin VGA connector
· Line-in, MIC-in, Speaker-out
Front Panel I/O Output Board:
· Power button, Reset button
· 2*USB connectors, 1*1394 connector
· S/PDIF-IN optical connector
· Center/Bass, Rear-out, Line-out, MIC-in
System BIOS:
· Award BIOS with 2MB/4MB EEPROM
· ACPI/PnP supported
Expansion Slots:
· 1*PCI slot, 1*AGP8X slot
Mother board Form Factor:
· Self-defined @ 262 mm (L) × 180 mm (W), 6 Layers
Chassis:
Metal and plastic
Dimension: 324mm (W) × 212mm (D) × 198mm (H)
Drive Bays:
1*3.5” standard FDD drive
1*3.5” standard HDD drive
1*5.25” standard CD-ROM drive
Power Supply:
220W Low-profile ATX power supply
|
