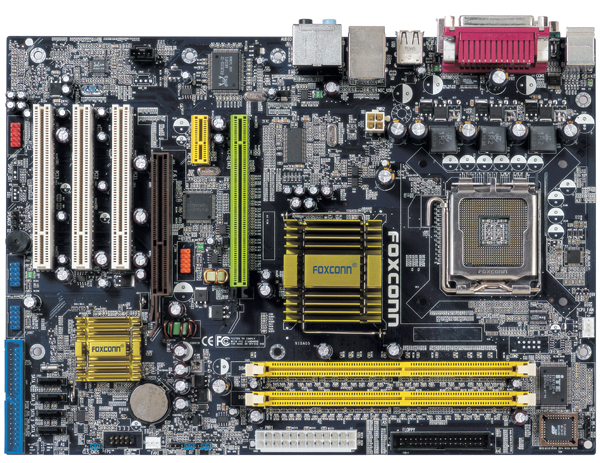

Foxconn 915PL7AE-8S Intel 915PL DDR PCI-E socket 775 + socket 478 ATX

Foxconn 915PL7AE-8S Intel 915PL DDR PCI-E socket 775 + socket 478 ATX
775 till 478 adapter medföljer.
Fungerar bara med socket 478 processorer baserade
på Prescott processorkärna med 1Mb cache.



# Intel 915PL/ICH6 chipset
# Socket 775 + Socket 478 via med följande adapter
# ATX form factor
# 800 MHz Front Side Bus (FSB)
# Supports up to 2 GB DDR SDRAM (400/333 MHz)
# Realtek ALC880, 7.1 channel High Definition Audio
# Realtek RTL8100 10/100 Ethernet controller
# Two (2) UDMA/100 IDE controllers
# Four (4) Serial ATA controllers

# Expansion Slots:
# One (1) PCIe x16 slot
# One (1) PCIe x1 slot
# One (1) 8x FGE (Foxconn Graphics Extension, compatible with AGP 8x/4x) slot
# Three (3) PCI slots
# Two (2) 184-pin DIMM slots

# I/O Ports:
# Two (2) PS/2 ports
# One (1) 9-pin standard serial port
# One (1) 25-pin standard parallel port
# Eight (8) USB 2.0 ports (four on I/O panel, four via headers)
# One (1) RJ-45 Ethernet jack
# Microphone, line-in, line-out, rear channel, side channel and LFE/CEN jacks
# S/PDIF coaxial jack
