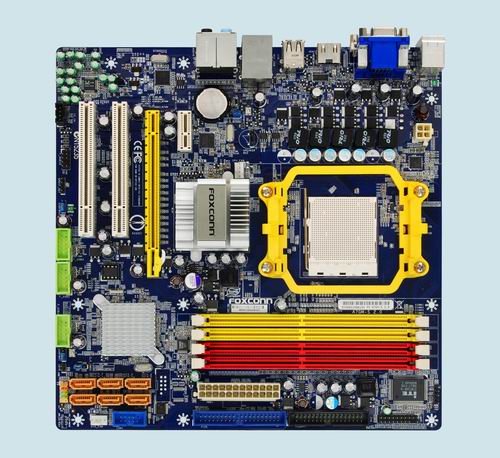

Foxconn A7GM-S 2.0 AMD780G DDR2 HDMI Socket AM2/AM3

Direktlänk: http://www.netvaruhuset.com/se/Art-1235.html

Klicka för att förstora

Artikel:	A7GM-S 2.0
Lagerstatus:
Pris:	890.00
	(712.00 exkl moms)

Foxconn A7GM-S 2.0 AMD780G DDR2 HDMI Socket AM2/AM3

Supports socket AM2+ and socket AM3 processors with HyperTransport™ 3.0 interface
Designed to support the latest AMD Phenom™ processors along with socket AM2 Athlon™ 64 and Sempron™ CPUs

AMD Phenom™ FX, Phenom™, Athlon™ 64FX, Athlon™ 64x2, Athlon™ 64, Sempron™ processors, Socket AM2+ and AM3.
- Supports Socket AM2+ with HT3.0 interface
- 5.2 GT/s HyperTransport™
- Dual channel DDR2 1066**/800/667x 4 DIMMs, Max 8GB
- 1* PCIe 2.0 x16, 1* PCIe 2.0 x1, 2* PCI
- ATA 133 x 1, SATAII x 6
- 7.1 channel HD Audio, Realtek® ALC888GR
- Gigabit LAN, Realtek® RTL8111B / RTL8111D
- 10 USB 2.0 ports

Specifications:
Processor: AMD Phenom™ FX, Phenom™, Athlon™ 64FX, Athlon™ 64x2, Athlon™ 64, Sempron™ processors, Socket AM2+ and AM3.
Chipset: AMD® 780G + SB700
Front Side Bus: 5.2 GT/s HyperTransport
Memory: Dual channel DDR2 1066**/800/667 x 4 DIMMs, Max. 8GB
VGA on Die: Integrated
Expansion Slots: 1* PCIe 2.0 x16, 1* PCIe 2.0 x1, 2* PCI
IDE: ATA 133 * 1
Serial ATA(SATA)/RAID: SATAII * 6 w / RAID 0, 1, 10
Audio: 7.1 channel HD Audio by Realtek® ALC888GR
LAN: Gigabit LAN by Realtek® RTL8111B / RTL8111D
Back Panel I/O Ports:
1 * PS/2 keyboard port
1 * PS/2 mouse port
1 * HDMI port
1 * DVI-D port
1 * audio jack supports 6 jacks
4 * USB 2.0 ports
1 * RJ45 LAN port
1 * VGA port
Internal I/O Connectors:
1 * ATX 24-Pin power connector
1 * 4-pin ATX 12V power connector
2 * 4-pin CPU / System FAN connectors
1 * CD-in connector
1 * Front panel connector
1 * Front Audio Header
1 * IDE connector
1 * Floppy connector
3 * USB power headers
1 * IrDA header
3 * USB 2.0 connectors support additional 6 ports
6 * Serial ATAII connectors
1 * Intruder Alarm header
1 * S/PDIF Out header
1 * TPM header
1 * Speaker header
1 * COM1 header
1 * COM2 header (reserved)
1 * Buzzer (reserved)
BIOS Features: 8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI
Support CD: Drivers, DirectX10, Adobe Reader, SuperUtilities, Norton Internet Security
Standards/Manageability: PCI 2.3, USB2.0, DMI 2.5
Special Features: *Supports ATI™ Hybrid graphics technology - boost your system performance by enabling the ability for both discrete graphics and integrated graphics to render simultaneously ** 1066MHz memory frequency with AM2+ /AM3 processors
Form Factor: Micro ATX ( 9.6" x 9.6")

För mer information, vänligen uppsök produktens hemsida.
