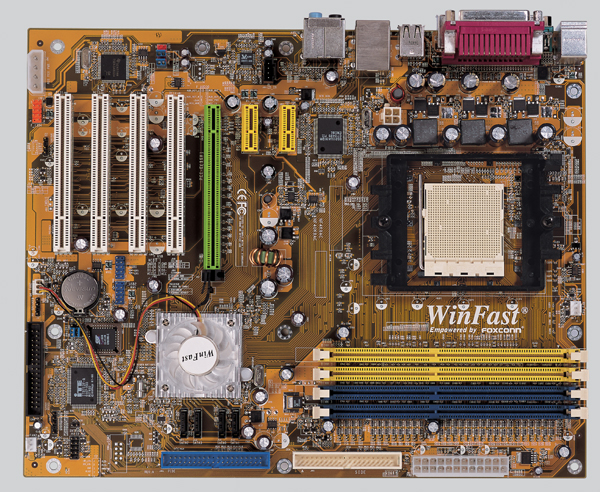

Foxconn NF4K8AC-RS-1.0 nForce4 Socket 939 ATX Bulk

Foxconn NF4K8AC-RS-1.0 nForce4 Socket 939 ATX Bulk
Endast moderkortet och I/O Shield (bakplåt)

- AMD Athlon™ 64 and 64 FX processors, Socket 939
- 1600 MT/s HyperTransport™
- Dual channel DDR400 / DDR333 / DDR 266 DRAM x4 DIMMs, Max 4Gb
- PCIe x16, 2 x PCIe x1
- Serial ATA x 4 w/ RAID 0, 1, 0+1
- 5.1 channel Audio, AC97 interface (Realtek)
- 10/100M LAN (Broadcom)
- 8 USB 2.0 ports


Specifications:
Processor: Socket 939 for AMD Athlon™ 64 and 64 FX processors
Chipset: NF4 (Single chipset solution)
Front Side Bus: Up to 1600 MT/s HyperTransport™
Memory: Dual channel DDR400 x 4, support up to 4GB
Expansion Slots: 1 x PCIe x16, 2 x PCIe x1 and 4 x PCI slots
IDE: ATA133 x 2
Serial ATA(SATA)/RAID: Supports 4 Serial ATA /150 devices, RAID 0, RAID 1, RAID 0+1
Audio: Integrated 5.1, Realtek ALC 655 (AC97 interface) - support S/PDIF-out
LAN: x 1, 10/100 M.LAN (Integrated GbE MAC + Broadcom AC131 10/100 PHY)
Back Panel I/O Ports: 1 x PS/2 Keyboard
1 set 5.1 channel Audio
1 x PS/2 Mouse
1 x Parallel
1 x LAN
1 x COM
4 x USB 2.0
1 x Coax S/PDIF out port
Internal I/O Connectors: 1 x CD IN
1 x COM2 header (reserve)
2 x USB 2.0 headers, support 4 ports
1 x S/PDIF out header
1 x IrDA header
1 x AUX IN (reserve)
1 x Speaker
1 x Front panel
1 x Front Audio Header
BIOS Features: LPC ROM 4M, ACPI 1.0b, APM 1.2, PnP 1.0a, SMBIOS 2.3, USB 2.0, WfM 2.0
Standards/Manageability: USB2.0, WfM 2.0, DMI 2.0, WOL by PME, LPC 1.1 Interface, PC2001
Special Features: Wake on ring, LAN, USB, keyboard & mouse, STR (Suspend-to-Ram), STD (Suspend-to-Disk), SuperRecovery, SuperBoot, SuperBIOS-Protect, SuperSpeed by BIOS, SuperStep, SuperLogo, SuperUpdate by CD Driver, CnQ, MediaShield
Form Factor: ATX (12” x 9.6”)
