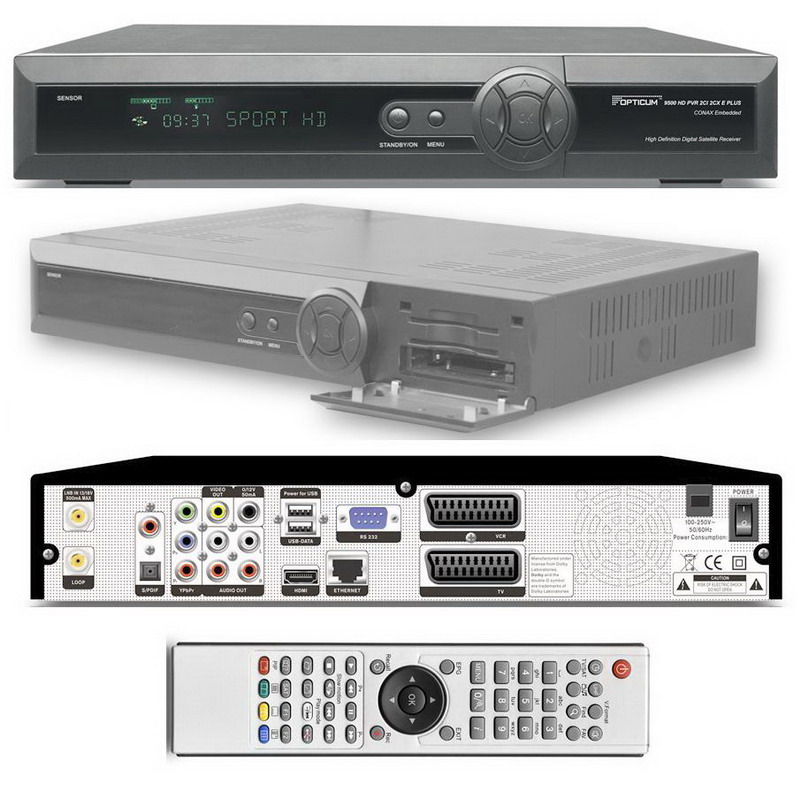

Opticum 9500 HD 2CI 2CX E Plus silver PVR ready HDTV DVB-S2 satellitmottagare

Opticum 9500 HD 2CI 2CX E Plus silver PVR ready HDTV DVB-S2 satellitmottagare


1. MPEG DVB-S / DVB-S2 (H 264) HD compatible
2. up to 8000 channelsv
3. Multilanguage Menu
4. Fast channel switching
5. possibility of creating own channels lists
6. possibility of creating Favourite lists (up to 32)
7. 8-characters VFD Display
8. Picture in Graphic
9. Electronic Program Guide
10. Subtitles (Teletext and DVB)
11. VBI Teletext
12. Parental Control
13. Games
14. Digital Audio Output S/PDIF - optical and coaxial
15. DiSEqC 1.0, 1.1, 1.2 and USALS
16. HDMI HD Video output
17. Two Card Reader slots with CONAX CAS
18. LAN 10/100 Mbps Ethernet
19. Time Shift
20. Video Recording
21. possibility to record two channels and watching third one (from 1 TP )

Main Features:
2x Card Reader slot with Conax embedded
2x Common Interface slot for CAM modules
Ethernet supported
USB 2.0 Host support
HDMI supported
Video resolution 1080i, 720p, 576p, 576i
Software & Channel Database Transfer via USB
Blind scan
Multi-LNB Controlled by DiSEqC control Version 1.0, 1.1, 1.2 and USALS
Teletext support
Multi picture display
Powerful channel control by favorites, lock, skip, move and delete
Multi-language supported (OSD & Menu)
Optical Output for Digital Audio

General Data

System Resources
Main Processor: 400 MIPPS based CPU
Flash Memory: 8Mbytes [Optional Expand]
DDR SDRAM: 1024+512Mbits [Optional Expand]

Tuner/Channel
1tuner: Decoding
Input Connector: F-Type, Connector, Female
Loop Through: F-Type, Connector, Female
Signal Level: -65 to -25 dBm
LNB Power & Polarization:
-Vertical: +13V/+14V
- Horizontal: +18V/+19V
- Current: Max 500mA
- Overload Protection
22KHz Tone: Frequency: 22±1KHz
DiSEqC Control: Amplitude: 0,6±0,2V, Version 1.0, 1.1, 1.2, USALS Available
Demodulation: 8PSK/QPSK
Input Symbol Rate: 2-45 Mbps, Convolution Code rate 1/2, 2/3, 3/4, 5/6, 7/8 and Auto

MPEG TS A/V Decoding
Transport Stream: MPEG-2/H.264
Input Data Rate: 120Mbit/s max
Aspect Ratio: 4:3, 16:9, Letter Box
Video Decoding: 1920x1080i
Video Resolution: 720x576 (PAL), 720x480 (NTSC)
Audio Decoding: MPEG-1 Layers 1/2, Dolby AC-3
Audio Mode: Left / Right / Stereo
Sampling Rate: 33KHz, 44,1KHz, 48KHz

A/V & Data Input/Output
TV-SCART: Video CVBS/RGB output, Audio L/R output
VCR SCART: Video CVBS output, Audio L/R output, Video CVBS, RGB input, Audio L/R input
RCA A/V: 1x YPbPr output, Video CVBS output, Audio 2x L/R output
S/PDIF: Optical, Coaxial Digital Audio or Dolby AC-3 Bit Stream Output
RS-232C: Transfer rate 115,2Kbps, 9 pin D-sub type
USB: USB 2.0, Compatible w/independent power supply output
HDMI: VER1.2 Type A

RF-Modulator (Optional)
PLL type: CH21~69 for the Demodulation
TV Standard: PAL BG/I/DK selectable
RF Connector: 75 Ohms, Male/Female
Frequency Range: UHF : 470~860MHz

Power Supply
Input Voltage: 100-250 VAC, 50/60Hz
Type: SMPS
Power Consumption: 30W Max.
Protection: Separate Internal Fuse and Chassis Grounding. The input shall have lighting or electric shock protection

Physical Specification
Size[W*H*D]: 360mm x 266mm x 65mm

Environment:
Operation Temperature: 0°C~+45°C
Storage Temperature: -10°C~+70°C
Storage Humidity: 5~95°RH (Non Condensing)
