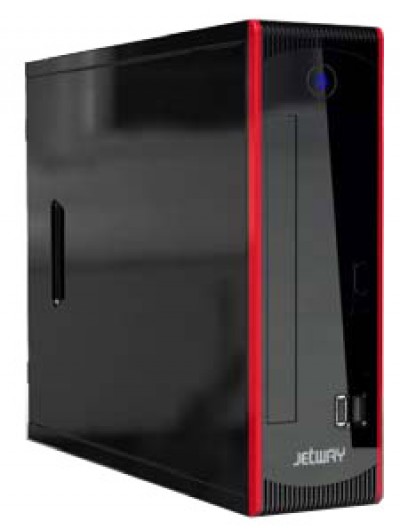

Jetway Nvidia ION Atom 330 dual core HDMI MiniITX Barebone Svart

Direktlänk: http://www.netvaruhuset.com/se/Art-1155.html

Klicka för att förstora

Artikel:	BC203C63P-330-B
Lagerstatus:	Finns i lager
Pris:	2690.00
	(2152.00 exkl moms)

Jetway MiniITX Barebone, Nvidia ION chipset, Intel Atom 330 dual core, 2DDRII 4Sata HDMI svart

Motherboard Specification
CPU Intel Atom N330(Dual core) Processors Clock: 1.6GHz Front Side Bus 533MHz
Chipset NVIDIA MCP7A-ION Chipset
Memory 2*240-pin DIMM Sockets for un-buffered Dual Channel DDR2 800/667 up to 4 GB
Ethernet LAN 1 * Realtek RTL8111DL PCI-E Gigabit Ethernet LAN
Wlan Integrated 802.11b/g/n WIFI module
Audio Realtek 6-Channel HD Audio CODEC w/ SPDIF out
Storage 4 * Serial ATA2 3Gb/s connectors
USB Embedded 10 * USB 2.0
BIOS AMI 8MB Flash ROM
M/B Form Factor Mini-ITX Form Factor, 170 x 170mm

Barebone Specification
Product size 210(W) x 258(D) x 65(H)mm
Devices Exposed 1 * Slim ODD Drive Bay and 1 * 2.5›SATA HDD Drive Bay
SlimDVD-RW included
Color Black
System Fan Side: 6cm Fan SLEEVE * 1
Front I/O Port
2 * USB 2.0 &
1 * SD/MS card reader & CIR
Rear I/O Port
6 * USB 2.0 ports
1 * PS/2 Mouse & Keyboard Combined connector
1 * RJ-45 port
1 * Audio I/O connector W/SPDIF out
1 * VGA port &
1 * DVI-D port &
1 * HDMI port
1 * 12V DC in connector
2 * WiFi Antenna holes

Internal I / O
1 * CPU Smart Fan Connector
2 * System/Chassis Fan Connectors
CD / AUX Audio in &
1 * Serial Port header
2 * USB 2.0/1.1 headers for 4 USB 2.0 ports
1 * 8bit GPIO header
1 * Mini PCI-E Socket
1 * IR header
1 * 4-pin SATA Power connector

Standard Accessories
1 * 60W AC-DC Adapter
1 * Power Cord
4 * Stands
1 * SATA CABLE HDD
1 * SATA CABLE ODD
1 * Jetway Home entertainment Remote control

Accessories
Mini PCI-E WiFi card (802.11 b/g/n)
WiFi Antenna

Power supply Onboard DC-DC Power supply
Packing Color Box Dimension:417(W) x 137(D) x 296(H)mm
Gross Weight:3.65KG
Net Weight:3.02KG
Certificate CE,FCC For Barebone CE, FCC, TUV, UL, CCC, CB For Power Adapter

För mer information, vänligen uppsök produktens hemsida.
