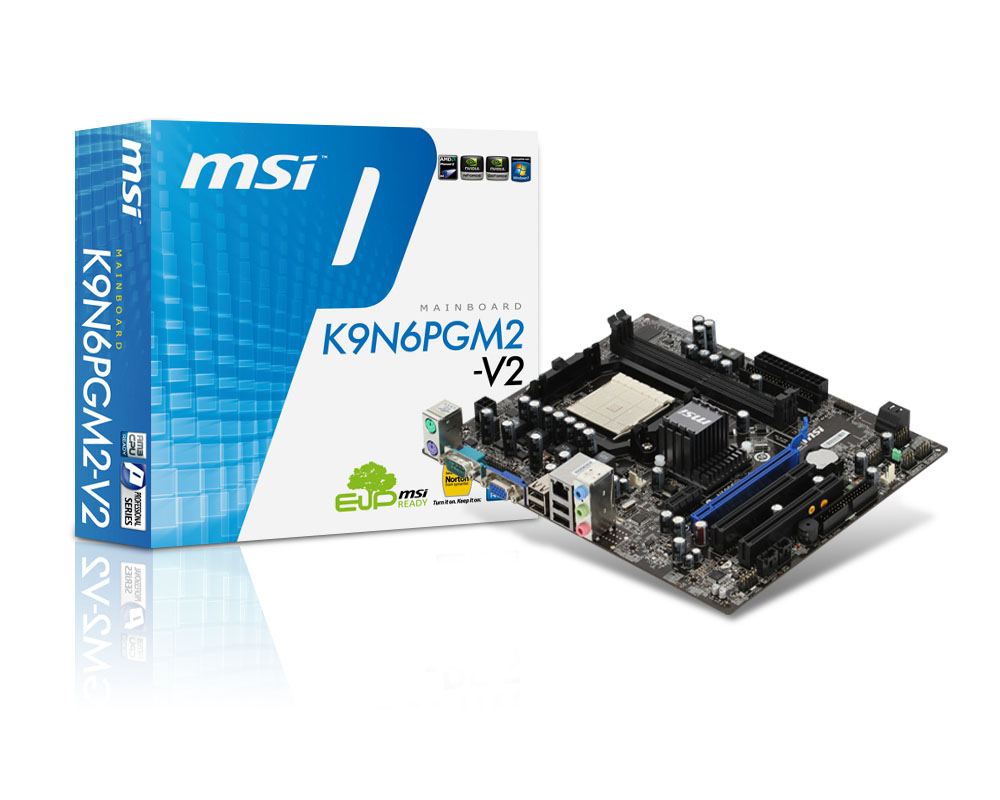

MSI K9N6PGM2-V2 V2.3 GF7025 DDR2 AM2 mATX

Direct link: http://www.netvaruhuset.com/se/Art-1238.html

Click to enlarge

Article :	K9N6PGM2-V2
Stock :	In Stock
Price :	795.00
	(636.00 excl VAT)

MSI K9N6PGM2-V2 GF6150 DDR2 AM2 mATX

Microstar moderkort för socket AM2 och AM2+ processorer.

CPU Support:
• Support socket AM2 for AMD® Athlon 64/Athlon 64X2 CPU / AM2+ for AMD® Phenom CPU / AM3 for AMD® Phenom II / Athlon II CPU . (95W only)
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Hyper Transport Bus
• HyperTransport 1.0 supporting speed up to 1000MT/s

Chipset
• NVIDIA® nForce 630 & GeForce 7025

Main Memory
• Supports Dual Channel DDR2 667/800
- 2 DDR2 DIMMs (240pin / 1.8V)
- Supports a maximum memory size up to 8GB.

Slots
• One PCI Express 1.0 x16 slot.
• One PCI Express 1.0 x1 slot.
• Two PCI slots (support 3.3v/5v PCI bus interface).

On-Board IDE
• One IDE port by NVIDIA® GeForce 7025
- Supports Ultra DMA 66/100/133 mode
- Supports PIO, Bus Master operation mode
- Can connect up to two IDE devices
On-Board SATA
• Four SATA II ports by NVIDIA® GeForce 7025
- Supports storage and data transfers at up to 3Gb/s

RAID Function
- SATA II 1~4 supports RAID 0, 1, 5, 0+1 mode by NVIDIA® GeForce 7025

Audio
• Chipset integrated by Realtek® ALC888S
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec

LAN
• Supports 10/100 Fast Ethernet by Realtek 8103EL

Internal I/O Connectors
- ATX 24-pin power connector
- 4-pin ATX 12V power connector
- CPU x1 / System x1 FAN connectors
- CD-in connector
- 1 x Floppy disk drive connector
- 4 x SATA II connectors
- 1 x ATA133 connectors
- 2 x USB 2.0 connector support additional 4 ports
- SPDIF-Out connector
- Front panel connector
- Front panel audio connector
- Chassis intrusion switch connector
- Clear CMOS Jumper
- 1 x TPM connector

Back Panel I/O Ports
- 1 x PS/2 Keyboard
- 1 x PS/2 Mouse
- 1 x Serial port
- 1 x VGA port
- 1 x 3 in 1 audio jack
- 4 x USB 2.0
- 1 x RJ45 LAN Jack

Dimension
• 24.4cm(L) x 20.0cm(W) Micro-ATX Form Factor

For more information, please visit this products webpage.

Manufacturer Info


-	Microstar Homepage
-	Other products
