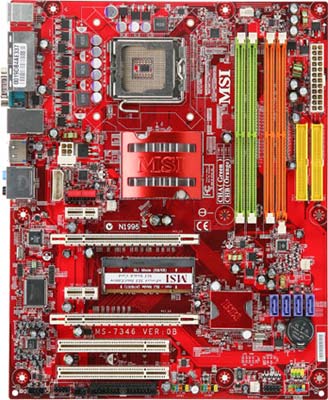

MSI P6N SLI V2 Nvidia 650i SLI Socket 775 ATX

Direktlänk: http://www.netvaruhuset.com/se/Art-1175.html

Klicka för att förstora

Artikel:	7346-010R
Lagerstatus:
Pris:	995.00
	(796.00 exkl moms)

MSI P6N SLI V2 Nvidia 650i SLI Socket 775 ATX

CPU Support:
• Supports Socket 775 for Intel® Core 2 Quad, Core 2 Duo, P4, P4EE, Pentium D, Pentium XE processors.
• Supports FSB 1333/1066/800/533MHz. (FSB 1333MHz supports on E6x50 processors only)
• Supports EIST technology.
• Supports Intel® Hyper-Threading technology.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset
• NVIDIA® nForce 650i SLI (C55) Chipset

• NVIDIA® nForce 430i (MCP51) Chipset

Main Memory
• Supports dual channel DDR2 533/667/800, using four 240-pin/1.8V DDR2 DIMMs.
• Supports a maximum memory size up to 8GB

Slots
• Two PCI Express x16 slots (supports PCI Express Bus specification v1.0a compliant)
- these two slots can support SLI technology with PCIE x8 mode.
- the second PCI Express x 16 slot (PCI_E4) is a special design that supports PCI Express x 8 mode only.
- the second PCI Express x 16 slot (PCI_E4) only supports to install graphics card in SLI mode.
• Two PCI Express x1 slot (support PCI Express Bus specification v1.0a compliant)
• Two 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface)

On-Board IDE
• An IDE controller on the NVIDIA® nForce430i chipset provides IDE
HDD/CD-ROM with PIO, Bus Master and Ultra DMA133/100/66 operation modes.
- Can connect up to 4 IDE devices.

On-Board SATA
• nForce 430i supports 4 SATA II ports (SATA 1 to 4).
- Transfer rate is up to 3Gb/s.

NV RAID
• Supports up to 4 SATA Hard drives
- RAID 0, 1, 0+1, 5 or JBOD is supported
- Supports up to 8 drives for RAID function.
MSI Reminds You...
• The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.

Audio
• Chip integrated by Realtek® ALC888
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 spec.

LAN

- Supports 10/100/1000 Fast Ethernet by Vitesse® VSC8601

Internal I/O Connectors

- ATX 24-Pin power connector
- 8-pin ATX 12V power connector
- CPU x 1 / System FAN x3 connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- 1 x SPDIF out connector
- 2 x USB 2.0 connector support additional 4 ports
- 1 x Floppy disk drive connector
- 4 x serial ATA connectors
- 2 x ATA133 HD connectors
- Chassis intrusion switch connector
- Clear CMOS jumper
MSI Reminds You...
• The floppy disk cable will be optional.

Back Panel I/O Ports

- 1 x PS/2 Keyboard
- 1 x PS/2 Mouse
- 1 x Serial port
- 1 x 6 in 1 Audio jack
- 4 x USB 2.0 ports
- 1 x RJ45 LAN Jack

BIOS
• The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.

Dimension
• 30.5cm(L) x 24.5cm(W) ATX Form Factor

Mounting
• 9 mounting holes.

För mer information, vänligen uppsök produktens hemsida.
